Gi-HALO Ammunition Inspection System for Shot-Gun Shells and Rimfire

Ammunition Inspection & Sorting Systems

General Inspection is a leading manufacturer of Ammunition Sorting & Inspection Systems in the USA.

If you’re going to meet today’s toughest standards, and even tougher standards of the future, you’re going to need a partner that provides innovative inspection technology. Technology that gives you the confidence to assure customers their exact requirements will be met. Technology that lets you raise product quality and uniformity to new levels. Technology that gives you a competitive edge in value. For the past 25 years General Inspection LLC has been helping manufacturers around the world reduce their parts per minute defect levels to almost zero with our Automated Inspection Equipment (AIE) for ammunition.

Case Sorting

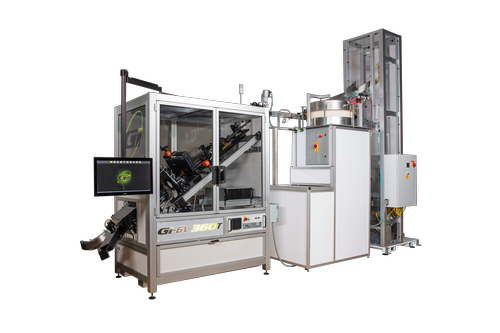

Gi-6V ammunition inspection machine

The Gi-6V is the world’s fastest and most accurate ammunition inspection machine available. It is a high speed comprehensive inspection system that detects all critical defects according to MIL-STD-636 for small caliber, MIL-STD-651 for medium caliber ammunition and components.

Small & Medium Caliber Cases and Cartridges


This high speed inspection machine uses a single conveyor and standard eight proprietary vision cameras to detect dimensional and surface defects at inspection rates up to 800ppm. This Multi-View system provides 360 degree part coverage, 16 images (8 Front-lit and 8 Backlit) resulting in complete dimensional and visual defect detection.

Cases, Cartridges, and Bullets Sorting

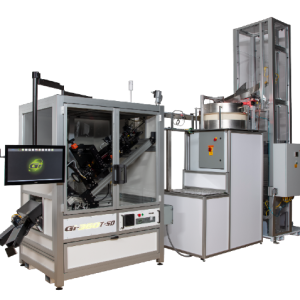

Gi-360T SD ammunition inspection machine

SD Vision provides 360o surface defect detection for defects such as porosity, stains, cracks, presence of annealing, plating and thread patch.  Four off axis cameras simultaneously image parts in color as they are illuminated with Gi’s unique lighting techniques.

Bullet & Penetration Sorting,
and Cartridge Sorting


The Gi-360T is a 3-D 100% inspection machine. Precision split/narrow laser beams, multi laser velocity gauge and system 22 modeling of threads are used to accurately measure parts to print specs and tolerances. It uses 3-D information from multiple laser beams to detect defects…

Cups & Primer Sorting


The Gi-100DT is a high-speed vision based measuring machine used for cup inspection. This system incorporates a series of front and back lit cameras to calculate a part’s height, profile and inner/outer diameters.


Models 75 &150

VisionLab is the ultimate gauging and inspection solution for ammunition parts. The system comes standard with backlighting and a smart motor controlled rotating stage. This patented system can process 360 part profiles in less than 10 seconds providing the most accurate and repeatable dimensional inspection results.

Rimfire Sorting


The Gi- HALO machine is the most budget friendly machine and uses a series of  four advanced proprietary vision systems to detect defects. This Multi-View system provides images from all around the part.  8 images (4 Frontlit and 4 Backlit) from the four cameras give an ability to measure all dimensions and find visual defects (like cracks, burrs, splits, gouged, etc.).
