Ammunition Inspection for Bullets, Cases, and Cartridges

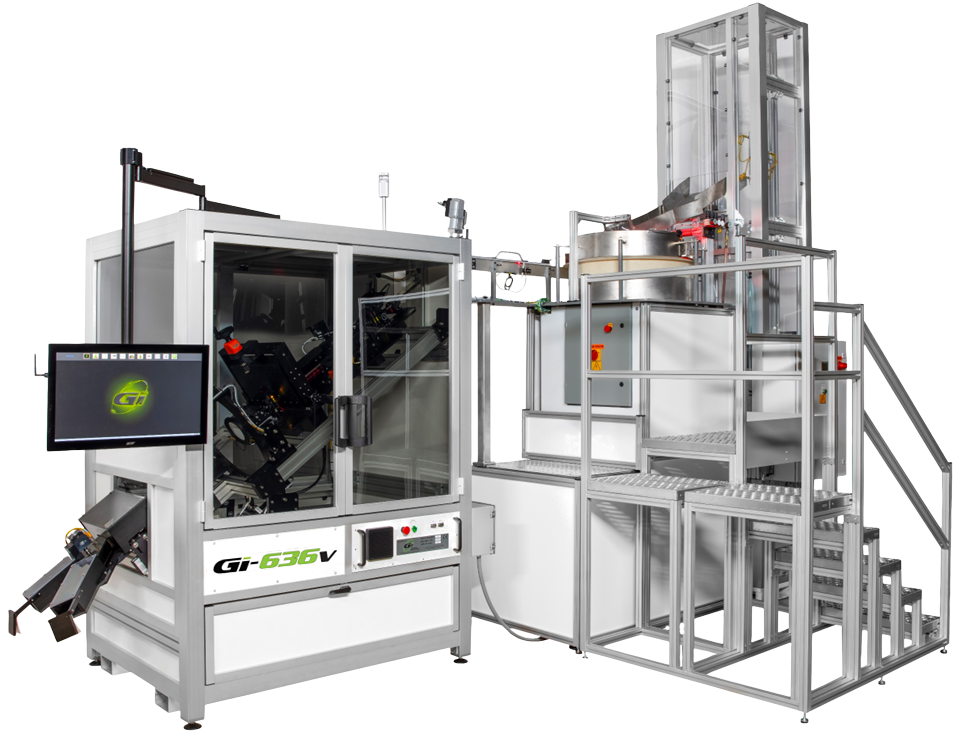

The Gi-636v is the world’s fastest and most accurate Automated Inspection Equipment for ammunition available. It is a high speed comprehensive inspection system that exceeds all critical defects according to MIL-STD-636 for small caliber, MIL-STD-651 for medium caliber ammunition and components.
SPECS
- Size: 96″ x 52″ x 113″, 1,500 Lbs.
- Rates: Up to 300PPM
- Power: 110V AC or 220V AC (2kW) 1 phase
The Premier Ammunition Inspection System
This system has been and continues to be implemented in factories world-wide by companies fulfilling government contracts for the military as well as companies servicing the commercial ammunition industry.
The Gi-636v is the ultimate highspeed ammunition inspection system. A combination of patented laser, vision, topography, and eddy-current technology provide unmatched accuracy and repeatability for all dimensional inspection and visual defect detection.
Gi-636v Features
• Measures: Bullets, Cases, Cartridges
• Detects all critical defects according to MIL-STD-636
for small caliber, MIL-STD-651 for medium caliber
ammunition and components
• Depth Vision
• Optional Eddy-Current for Metallurgical Variations
• Up to 300 Parts Per Minute
• Optional Multigate that separates by pass levels and defect types
• Optional Packaging Systems
360° Dimensional Inspection
100% 3D inspection with multiple precision optics
accurately measure ammo to print specifications;
including lengths, diameters, radii, concentricity, angles,
length to shoulder, virtual full-form, and more.
Multi-View Surface Inspection
A 16-camera vision inspection station provides more than 360° surface inspection. Used specifically for flaws and damage detection around the case circumference. Proprietary software analyzes part images in real-time, locates defects, and compares the defect size to the quantitative tolerances with finer detail than specified in Mil-Std-636. An additional 8 color camera SD vision station is available to detect stains, acid burns, and other surface discolorations.
Detects
• Dents
• Scratches
• Acid burn
• Perforations
• Taper folds
• Wrinkles
• Splits
• Buckles
SD Vision
Has up to 8 cameras with special lighting that detect stains, discoloration, and scratches.
Detects
• Draw scratches
• Stains
• Discoloration
• Scaly metal
3D Primer Depth & Primer Seating
Multiple cameras and precision lasers measure primer pocket
depth, primer seating, and anvil height.
Detects
Cases: Measures primer pocket depth and anvil height
Cartridges: Verifies primer seating
3D Primer Pocket Diameter System
Multiple cameras and precision lasers measure the primer pocket diameter at the correct inner diameter location.
Detects
Measures: Primer pocket diameter at the inner wall location
Optional Stations
Multigate
Eddy Current
Weigh Station
